FOUR WHEELED DAY AND NIGHT SURVEILANCE ROBOT (NERVA®-LG)
NERVA®-LG robotic system consists in a light, robust, versatile platform, and an associated control station. The 4 cameras and microphone which equipped the robot make it immediately usable to perform long range observation missions (over 1,000m Line Of Sight and over 300m in urban environment).

The platform is compatible with more than 20 optional “Missions Kits” which extend the set of addressable missions such as CBRN reconnaissance, Counter-IED, rescue or contact operations. On-board semi-autonomous capabilities further improve the operational efficiency induced by this versatility by reducing operators’ workload.

TECHNICAL SPECIFICATIONS
Long radio range (OFDM) 1000 meters
Speed 0-4 km/h & 0-13 km/h
Weight 5 kg
Endurance up to 2 hours
Charging time < 1 hour
Camera 360° with front HD color Audio Microphone
Light White + IR
Robustness MIL-STD-810
Waterproofness IP65 (IP67 on request)
HAND HELD LIQUID AND SOLID EXPLOSIVE DETECTOR (PROGENY RESQ LT)
It provides the industry’s most comprehensive Explosive detection range in a hand held form. It can detect liquid as well as solid explosives. Its operation is simple and manually it can be operated through touch screen as well as large buttons. It is designed and developed to measure a broader range of substances by Raman Spectroscopy technique which minimizes the impact of real-world HAZMAT and terrorist threats. On board Digital camera is also available to record sample for evidence and analysis. It is the first Explosive Detector to incorporate 1064 nm Laser Technology. It can be connected to computer for generating report in PDF format for taking the printout.
TECHNICAL SPECIFICATIONS
Mode of Operation Handheld, with optional docking station Efficiently identify threats at the point of need  Includes measurement delay timer (up to 10 minutes) for additional safety  Remote operation by PC or tablet using WiFi or USB
Excitation Wavelength 1064nm Measure a broader range of substances
Output Power 30-300 mW adjustable laser excitation power Allows for customization of analysis parameters to obtain most  accurate analysis of your specific materials
Graphical User Interface with QuickDetect™ Software Touchscreen and softkeys Smartphone-inspired with bright, touchscreen display or large button navigation for protective glove use
Digital Camera On-board Record sample evidence and store with analysis
Included Standard Library Yes Over 12,000 compounds including CWA, explosives, TIC/TIM, narcotics
User-Created Library Yes Easily adaptable for new, emerging threats into custom library
Operating Temperature -20 to 50°C
Certification MIL-810-G, IP-68
Battery >5hrs Long-lasting charge with options for a recharger or docking station for 24/7 operation
External Power 100~240VAC/+18VDC
Size 29.9cm x 8.1cm x 7.4cm (11.8in x 3.2in x 2.9in) Allows for single-hand operation
Weight ~1.6kg (3.5lbs)
COMPACT, TACTICAL THROUGH-WALL IMAGING SYSTEM (XAVER™ 400)
The Xaver™ 400 allows quick location of people hidden by walls and barriers, enabling tactical teams to step into the known and obtain mission-critical information.

The Xaver™ 400 is a compact, lightweight and durable personal device, optimized for the speed of tactical entries. The Xaver™ 400 gives special ops and rescue forces critical information in real-time about the number of people and their location behind a wall. Simple to operate, the Xaver™ 400 provides vital information when and where it is needed.

Tactical teams conducting urban operations are constantly faced with stepping into the unknown – is anyone in the room, hidden behind the wall or hiding in the hallway? Mission plans must account for any contingency, adding complexity and increasing the chance of error often in life and death situations. Camero’s Xaver™ Sense Through The Wall (STTW) systems provide unprecedented situational awareness.

TECHNICAL SPECIFICATIONS
Device type Compact through-wall radar
Penetrable wall materials Cement, plaster, brick, concrete, reinforced concrete, adobe, drywall and other standard building materials
Detection range 4m, 8m, 20m
Field of view 120° in both Azimuth and Elevation
Display mode Plain view, range over time (history), high penetration and 3D view
Frequency range 3GHz to 10GHz
Resolution Range: Better than 5cm; Cross Range: Better than 50cm at 8m
Dimensions L: 37cm, W: 22.5cm, D: 12cm
Weight 3.2kg including batteries
Power supply Rechargeable and primary batteries, mains power source
Battery operation time Rechargeable: 3.5 hours Primary: 4.5 hours } Total 8 hours
Wireless capability Optional built-in wireless module for remote monitoring and control
Accessories External battery charger, power supply, hard-shell carrying case, tripod, tactical backpack, XaverNetTM (optional remote wireless ToughPad)
HAND HELD TACTICAL THROUGH-WALL DETECTION SYSTEM (XAVER™ 100)
Building on its successful legacy of through-wall RF imaging products, Camero has developed an innovative presence of life detector – the Xaver™ 100. The Xaver™ 100 stems from the core radar- based imaging technology used in our Xaver™ line of through wall imaging products. Developed with the specific needs of tactical operators in mind, the Xaver™ 100 provides instant critical situational awareness and target acquisition data.

By providing accurate and reliable information on the occupancy of enclosed spaces, the Xaver™ 100 enables better tactical decision making in many operational scenarios. Its potential uses include:

  • Tactical Entry/Assault – alert operators to the presence of potential threats
  • Hostage Recovery – quickly determine which spaces are occupied
  • Search & Rescue – speed up search by only focusing on spaces with living presence
  • Breaching – avoid unwanted casualties by optimal placement of charges
  • Force Protection – serve as “virtual window” to spot threats approaching from outside

TECHNICAL SPECIFICATIONS
Device type Handheld through-wall radar
Penetrable wall materials Cement, plaster, brick, concrete, reinforced concrete, adobe, stucco, drywall and many other standard building materials
Detection range 4m, 8m, 20m
Field of view 120° in both Azimuth and Elevation
Display mode Indication of target presence, movement direction, and distance
Frequency range 3GHz to 10GHz
Dimensions L:21.8cm, W:9.7cm, D:6.5cm
Weight 660g with 4 Lithium 123 Batteries
Power supply 4 Lithium 123 Batteries (optional 2 Lithium AA Batteries)
Battery operation time 3.5 hours with 4 Lithium 123 Batteries
Wireless capability Optional built-in wireless module for remote monitoring and control
Accessories (optional) XaverNetTM  (remote wireless ToughPad)
REAL TIME VIEWING SYSTEM (ORAMA II)
The ORAMA II system is not only the most popular DR system offered by Logos, it is also the most rugged. With an IP64 rating and a drop test rating of 1 m, the ORAMA II is the ideal solution for field use. This system offers a 14” x 17” image area, 8 mm bottom border, and is shielded for up to 330 kV sources. Coupled with the ASÝRMATOS II interface, the ORAMA II provides users with 400 m line of site wireless operation. When used in conjunction with a Golden Engineering XRS3, the system provides over 60 mm of steel penetration as well as organic detection (optional CHRÓMA module required for organic detection).
TECHNICAL SPECIFICATIONS
Detector Type Amorphous Silicon with TFT
Detector Area 16.7" x 14.1" (423 x 358 mm)
Pixel Resolution 3,328 x 2,816 pixels
Pixel Pitch 127µm
Limiting Resolution 3.9 lp/mm
Pixel Depth 16 bits
Dimensions (Panel Only) 18.7" x 15.7" x 0.7" (475 x 400 x 18 mm)
11.7 lb (5.3 kg)
Operating Temperature -4 to 122 F (-20 to 50 C)
HAND HELD FIBER OPTIC SCOPE WITH IR
Hand Held Fiber Optic Scope with IR is extremely compact dimensions, minimal weight and optimal handling. It is widely use in search operation by Special Forces. Inspections and search operation in pitch dark remote or inaccessible areas for silent operation. It has motorised 4-way articulation / 360º control, 6.4mm probe diameter with 3.5 inch LCD display.
TECHNICAL SPECIFICATIONS
Diameter 6.4 mm
Length 3 m
Probe type & Flexibility Semi Flexible
Operation Pistol Grip one hand operation.
Field of View 60˚
Recognition Capable of recognizing a human target upto a distance of 3 Meters or more.
Light Source Eye Safe Infra Red, Invisible to naked eye.
Zoom 8x
HAND HELD FIBER OPTIC SCOPE
Hand Held Fiber Optic Scope is extremely compact dimensions, minimal weight and optimal handling. It is widely used to examine and inspect small, difficult to reach places such as insides of machines, locks, room, suspect bags etc.
TECHNICAL SPECIFICATIONS
Pistol grip one hand operation.
Convenient on/off switch.
Semi flexible probe and its effective working length is 3 meters.
Probe Diameter 6.4 mm with tungsten braid.
Advance image sensor with resolution of 4, 40,000 Pixels.
Size of lens is 2.1 mm.
8x Digital Zoom facility.
Size of Hand Held TFT LCD Monitor is 4.3”.
Motorized joystick to provide 360 º all-ways.
Field of View:  90º.
Direction of View : forward.
Depth of Field: 15 mm to infinity.
It works on AC Power supply without inserting the battery.
32 GB SD Card for storage facility.
Continuous operating time: 3 hrs with Li-ion rechargeable battery.
Resolution of Image:  640*480 pixels (JPG).
Resolution of Video:  640*480 pixels (AVI)
Working temperature range -10˚C to +50˚C.
Weight: 1 KG.
Objects close to lens appear clearly.
LED light source enable illumination of minute details of target.
Insertion probe: water proof and fuel proof.
RADIATION DETECTOR (R500)
R500 radiation scanner can detect α β γ χ-Rays. The R500 has adopted the nuclear radiation sensor standards as recommended by the American Bureau of Standards and has a 2 inch large flat high sensitivity sensor. The R500 is one of the best performing instruments in the current market. The R500 has full CE certification and is manufactured to ISO9001 quality standards.

Model R500 can be easily used in restaurants, hotels, home, public places, laboratories, power plants, quarries, emergency rescue stations, metal treatment plants, underground oil fields, and oil pipeline equipment, environmental protection, police stations and other departments. It can also be used to:

Inspect food pollution
Inspect environmental pollution
Manufacture steel Plant
Inspect radioactivity of porcelain tableware and glass etc.
Inspect radioactivity of materials architecture such as stone etc.
Inspect radioactivity of underground drilling pipes and equipment
Inspect harmful radiation in personal precious property and jewelry
Inspect X-ray intensity of Medical and industrial X-ray instrumentation
Inspect radon radiation and cesium pollution in the surrounding environment
Inspect landfill and garbage dumps in danger of nuclear radiation contamination
TECHNICAL SPECIFICATIONS
Types of measured Ray  α、β、γ and Χ ray
Range Radiation dose rate :0.01µSv/h-1000µSv/h0.001mR/hr-100mR/hr Impulse dose rate :0-300,000cpm0-5,000cps Radiation dose accumulation :0.001µSv-999Sv
Sensitivity 3500CPM/mR/hr(aboutCs-137)
Slide cover By opening the slide it detects α β γ and x-rays.   By closing the slide the sensor is dual protected and can detect gamma and x-rays.
Stain-proof sets Stain proof sets, even if contacting with materials polluted by radiation.
Telescope link Telescope link extend to 1.5 meter to remotely detect radiation rays and protect humans from potential injury.
Energy response Alpha ray: from 4 MeV Beta ray: from 0.2 MeV Gamma ray: from 0.02 MeV X ray: from 0.02 MeV
Sensor Large GM tube effective diameter 45mm MICA window density1.5-2.0mg/cm2
Average time Default:32 seconds adjustable from 2s to 120s automatically or manually
Display Large LCD with bar graph display
Alarm Alarm value setting fully adjustable default: 5μSv/hr
Storage Storage of up to 2000 data points manually or automatically
Software Transmit data in real-time to computer for displaying analyzing and recording.
Working temperature of detector -40℃ to75℃
Weight Approx 450 g.
Dimension L 300mm x W90mm x H 40mm
Power 3 AA battery Continuous operation for up to 30 days
Quality certificate European CE US FCC15
RADIATION DETECTOR (910)
R910 is an upgraded version of the original model 900. In 2011 Coliy technology GmbH designed the Radiation Scanner model 910 to make it easier to operate with a much higher reliability factor. Its button are simplified into 8, which makes the interface more user friendly, its internal circuitry is optimized to be more reliable; its memory is expanded to stock more data.

The Radiation scanner 910 is designed to help recognize the risk of terrorist attack after the 9.11 incident. With its powerful functions it can be used under severe adverse conditions. Due to its resistance to high impact and high and low temperature it offers reliable and precise measurement data. The main body of the Radiation Scanner 910 is small, light with a strong shell to protect it.

Radiation scanner Model 910 can be used widely in the fields of pharmaceutical factory, laboratory, power plants, quarries, emergency rescue stations, metal treatment plants, underground oil fields, and oil pipeline equipment, environmental protection, police station etc. It is used for:

Inspecting underground water radium pollution
Inspecting radioactivity of underground drilling pipes and equipment
Inspecting radon radiation and cesium pollution of surrounding environment
Inspecting radioactivity of architecture materials such as stone etc
Inspecting radioactivity of porcelain tableware and glass etc
Inspecting local radiation leakage and nuclear radiation pollution
Inspecting the danger of nuclear radiation in landfill and garbage dump
Inspecting harmful radiation of personal precious property and jewelry
Inspecting X-ray intensity of Medical and industrial X-ray instrument from
TECHNICAL SPECIFICATIONS
Types of measured Ray  α、β、γ and Χ ray
Range Radiation dose rate :0.01µSv/h-1000µSv/h Impulse dose rate :0-30,000cpm,  0-5,000cps Radiation dose accumulation :0.001µSv-999999Sv Impulse Dose accumulation: 0-999999
Energy response Alpha ray: from 4 MeV Beta ray: from 0.2 MeV Gamma ray: from 0.02 MeV X ray: from 0.02 MeV
Ray Selection Switch α、β、γ and Χ rays selection
Sensor Halogen Filled detector
Display 6 Digit large display (LCD) numeric with all inspection data with bar chart: Radiation dose rate, impulse rate, Radiation dose accumulation, impulse dose accumulation, time date, alarming value, standard calibration factor, max. radiation dose rate.
Alarm Alarm value settable free default: 5μSv/hr
Storage Storing 800 points manually or automatically
Software Transmit data in real-time to computer for displaying analyzing and recording.
Working temperature of detector -40℃ to75℃
Weight 250 g.
Dimension L 170mm x W74mm x H 30mm
Power 3 AAA batteries to work  30 days consecutively
Quality certificate European CE, US FCC15
SEARCH KIT MAGNIFYING (SKM)
The SKM Search kit Magnifying is a portable visual search kit for use by law enforcements and customs officers, security staff and bomb technicians and can be used for searching inaccessible areas where human eye can’t reach.
TECHNICAL SPECIFICATIONS
Flashlight Right angle  2 cells 02 nos.
Endoscope 10 V lamp, 9.65mm (0.38in) dia.,350 mm side viewing (90˚ to shaft) 01no.
Handlamp fluorescent (LED), 12 V 01 no.
Battery handle 2 C  cells 02 nos.
Recovery Magnet 01 no.
Magnifier x8 with lamp 01 no.
Mirror arm with torch 500mm, 45˚ angel, 2 D cell 01 no.
Mirror arm telescopic, 1500mm 01 no.
Mirror of dia 38mm, with advance ball and socket 01 no.
Mirror of dia 64mm, with advance ball and socket 01 no.
Convex mirror 140mm dia 01no.
Plano mirror 64mm dia 01no.
Plano mirror rectangular(64mm x 114mm) 01no.
Light probe dia 2mm length 150mm 01no.
Light Probe dia 3mm length 50mm 01no.
Light probe dia 3 mm length 200mm 01 no.
Light probe dia 8mm length 254mm 01no.
Light probe dia 14mm length 380mm straight 01 no.
Light probe dia 14mm length 380mm flexible and stay 01 no.
Light probe dia 14mm length 380mm acrylic, safety. 01no
Clip on mirrors with accessories to fit 14mm dia  light probes with extension 380mm length straight and extension 203mm length angled  01 no.
Mirror sleeve 4.5mm dia fits 150mm light probe 01no.
Mirror sleeve 9.5mm dia fits 50mm light probe. 01no.
Mirror sleeve 9.5mm dia fits 200mm light probe 01no.
HAND HELD THERMAL IMAGER/ NIGHT VISION DEVICE (SiiHB)
The Sii HB handheld thermal binocular provides night and day vision capabilities for surveillance, perimeter security, search and rescue, and other applications on land or at sea. Sii HB delivers high-resolution day and nighttime vision capabilities, enabling human target detection up to 2,000 meters and vehicle detection up to 4,000 meters. Sii HB provides brighter and sharper images day or night, in all security and civil operations. Sii HB is an unmatched combination of excellent performance and affordability in a portable, lightweight device.
TECHNICAL SPECIFICATIONS
Bomb Basket (BCR L3)
Bomb Basket have become very important for the public safety in today's world. Bomb Basket is designed to protect the public from the harmful effects of an explosion. BCR L3 combines high strength inner and decorative outer painted or stainless steel shells.

BCR L3 provides true protection to the public - 360° around the trash can and confines the blast effect of an explosives located anywhere in the inner storage area.

Examples of BCR use:
  • Airports, train stations, bus stops.
  • Government facilities, critical infrastructures.
  • Street corners throughout the city.
TECHNICAL SPECIFICATIONS
  • Protection - Level 3 (2.7 kg TNT).
  • Diameter – 760 mm (30")
  • Height – 994 mm (39")
  • Weight – 500 kg (1100 lbs.)
  • Internal volume 40 gallons (150 litres)
  • Finish - painted or stainless steel clad.
Bomb Inhibitor

The LBA Systems Inhibitor is the modern alternative to the Bomb Blanket which does not have the ability to extinguish the fireball or reduce blast, which can be the cause of most damage.

The Inhibitor is rectangular is shape and manufactured from natural rubber which allow it to absorb the effects of an explosion without causing additional fragments. The inhibitor has hollow sides and top, which are designed to contain the liquid required to suppress the explosion. The inhibitor has ribbed sides and top to provide strength and rigidity once in position. Carry handles are located on the top. The inside of the inhibitor is hollow providing enough space to contain a standard brief case laying flat. In the event of an explosion the liquid surrounding the device will completely quench the fireball reducing the blast effect by some 90%. Collateral damage is therefore minimised.

The inhibitor has successfully tested against 2 Kg of TNT Explosive, resulting in a 90% reduction in blast and while virtually eliminating the fireball.

Benefits:
  • Saves lives, reduces causalities.
  • Up to 90% reduction in blast damage.
  • Up to 90% reduction in fragmentation damage.
  • Virtual elimination of fire risk.
  • Consequential loss reduction.
  • Retains forensic evidence.
  • Simple to install.
  • Installed in Airports, Government buildings, public places and shopping malls.
  • Also used in mail sorting offices and areas where any threat of attack.
  • Essential for safekeeping of suspect devices or munitions that are delivered to police stations prior to examination by bomb disposal officers.
Technical Specifications:
Inhibitor external sizes: Length 66cm Width 54cm Height 18cm
Internal space: Length 51cm Width 39cm Depth 12cm
Weight: 27 KGs +/- 5 %

Wall Mounting Container: Length 72cm Width 58cm Height 21cm
Weight 9 KGs

Boxed Gross Weight complete system for shipment 40 KGs.

Full Body Scanner (Conpass DV)

CONPASS DV manufactured by Adani Ltd., Belarus allows the operator to obtain a projection X-ray image of the abdominal cavity and the person under inspection to reveal what’s hidden under the clothes, "look inside" the abdominal cavity. CONPASS DV effectively detects the following items:

  • Explosives, detonators, wires etc.
  • Unconventional weapons of nontypical materials, such as plastics, wood, ceramics etc.
  • Swallowed capsules, pillows, containers with narcotics;
  • Small metallic objects (razors) in cavities;
  • Precious stones and metals
  • Firearms and edged weapons
  • Narcotics
  • Containers with biological or chemical materials
  • Electronic devices
  • Food
  • Other objects prohibited for transportation
Technical Specifications:
Electronic Stethoscope (Doppler Scope)

The (Doppler Scope) Electronic Stethoscope is a very sensitive monitoring instrument for the detection of mechanical run-back timers and electronic timing systems in both IEDs and UXO. The portable, battery-operated kit comprises 2 types of sensor: a non-contact hand-held microwave sensor and an audio contact sensor (with ground-spike attachment). A small control unit/amplifier with shoulder strap and noise suppressing headphones completes the kit.

The bomb technician can optimise the sensitivity of all sensors by simple adjustment of the gain and frequency response on the control unit.

The kit is shock-proof and splash resistant and the lightweight electronic control unit can be shoulder or belt-mounted. All items are supplied in a robust ABS carrying case complete with battery pack, battery recharger and connecting cables.

The (Doppler Scope) Electronic Stethoscope forms an integral part of explosive disposal team inventory and is currently in service with many EOD/IEDD forces around the world.

KIT SPECIFICATIONS
Amplification 7*10
Electronics range Electronics range: 500Hz - 5.5kHz
Operating Time contact sensor: 15 hrs
non-contact sensor: 6 hrs
Power Supply contact less: 9.6V 1000mA Ni-cd
contact sensor: 9 V
rechargeable Ni-Cad battery
Total Weight 4.6kg Approx
Wide Band Receiver (STC II)

The CTL-SystemWare Travel Case (STC) combines hardware and software into a portable Radio Frequency (RF) detection and monitoring system that is small, lightweight, and easy to use. The software application interface is accessible by users with minimal RF knowledge, but also provides all the tools an experienced operator needs to accomplish the mission. The STC is intended to be used by security professionals for RF signals collection and analysis in support of static or mobile operations. It is ideal for use to evaluate Wi-Fi and cellular spectrum for unauthorized transmissions.

STC II has four internal receivers. The primary receiver collects the radio frequency spectrum from 1 kHz to 26.5 GHz while the other three receivers collect the logical information from WiFi, Bluetooth and ZigBee. This allows the unit to collect and analyze the physical energy of the spectrum while simultaneously collecting WiFi MAC addresses, Bluetooth MAC addresses as well as the node information from ZigBee.

Features
Deep Search Metal Detector (Minex 4.600)

The MINEX 4.600 is designed to detect very small near-surface metal objects, so-called minimum metal mines or plastic mines. It offers maximum sensitivity and best possible pinpointing of targets while still providing robustness and reliability in any conditions. A ground learning function for operation on uncooperative soil and a military mode that turns off the LED indicators for safe night operations are only two of the vital features available. The MINEX 4.600 comes in a rugged transport case and can be equipped with accessories according to the customer’s needs. Commonly, individual packages are defined and delivered.

Technical Specifications


Remotely Operated Vehicle (PIAP GRYF)

Technical Specifications

DIRECTED-ENERGY UNMANNED AIRCRAFT SYSTEM (UAS) COUNTERMEASURE (BATTELLE DroneDefenderTM)
Battelle’s DroneDefender counter-UAS system, utilizing a non-kinetic solution, defends airspace up to 400m against UAS, such as quadcopters and hexacopters, without compromising safety or risking collateral damage.

This innovative system provides instantaneous disruption of unwanted UAS using two different defenses.

Remote control disruption:
  • Multifrequency disruption to block remote control communication and neutralize drones.
Immediate response against immediate threats

Successfully tested against commercial drone targets, the DroneDefender system provided a consistent response up to 400 meters. The remote control and GPS disruption responses are both fast acting, resulting in instant threat mitigation.

  • Demonstrated range: 400m
  • Cold start time: <0.1 seconds
  • Operating time: Up to 5 hours continuous
  • Weight: No more than 15 lbs - configuration dependent
  • Directionality: 30° cone
Innovative, cost-effective technology

The contemporary design uses proven technology to neutralize the threat posed by unidentified UAS quickly and safely.

  • Multiple antennas
  • Disruption electronics
  • Picatinny rail mounted sight
  • Battery powered
Ease of use
The easy-to-use, lightweight, point-and-shoot system requires no extensive training. The DroneDefender system quickly disrupts the adversary’s control of the drone, neutralizing it so no remote action, including detonation, can occur, minimizing risk to public safety and damage to the drone.

Non Linear Junction Detector (Lornet Star)
The non-linear junction detector «LORNET- STAR» is used for countersurveillance search works in premises, transport and outdoors. It is designed to find specialized covert surveillance equipment containing semiconductor components. «LORNET-STAR» has a built-in automatic frequency selection system and it can tune away from the narrowband interference automatically (selecting a 2nd harmonic receiving channel with the minimum noise level). With interchangeable transmitter heads LORNET-STAR becomes extremely versatile for varied scenarios.
Technical Characteristics:

Probing signal type pulse, CW
Avg. Power pulse/CW <4W/0.3 W
Sensitivity (2nd and 3rd harmonic receivers) > -130dbm typical
Probing signal frequency range 800Mhz
Operation time with a built-in battery (pulse/CW) 3.5h / 1.5 h
Weight Max. 1.2 kg
Optimum Operating conditions ambient temperature of 5°C to 40°C, capable of working in temperatures between -5°C to 60°C
Main Competitive Advantages:
  • Interchangeable Transmitter Head 800Mhz/2.4Ghz/3.6Ghz Light weight and compact
Non Magnetic Tool Kit (NMT 200)
NMT 200 is general-purpose tool set for generic, non-specific, EOD tasks including mines/munition disposal operations. The EOD Non-Magnetic tool kits have been developed in response to the specific requirements of NATO EOD units, and are certified to NATO STANAG 2897 EOD. The EOD Non-Magnetic tool kits give the capability to deal with older unexploded ordnance (UXO) while meeting the challenges of modern and potentially unknown types of weapons and devices. This comprehensive set of non-magnetic and non-sparking tools provides explosives disposal specialists with a definitive, dependable and versatile equipment resource.
ITEM DETAILS
1 Cold Chisel 16 mm x 13 mm x 165 mm 1
2 Cold Chisel 25 mm x 22 mm x 230 mm 1
3 Pinch bar, chisel & point, 16 x 455 mm 1
4 Ball Pein Hammer 1 1/2 lb (680 g) 1
5 Club Hammer 2 lb. (910 g) 1
6 Knife 210 mm (110 mm blade). 1
7 Combination Plier 8" (205 mm) 1
8 Flat Nose Plier 5" (125 mm) 1
9 Long Nose Plier with cutter 7" (180 mm) 1
10 Diagonal Side Cutting Plier 6" (155 mm) 1
11 Diagonal Side Cutting Plier 5" (125 mm) 1
12 Round Nose Plier 5" (125 mm) 1
13 Long Nose Plier 5" (125 mm) 1
14 Tweezers 200 mm 1
15 Probe Double End 4 x 225 mm 1
16 Scissor 130 mm (70 mm Blade) 1
17 Screwdriver Parallel Blade 3 x 60 mm TL: 150 mm 1
18 Screwdriver Parallel Blade 4 x 70 mm TL: 160 mm 1
19 Screwdriver Parallel Blade 6 x 100 mm TL: 200 mm 1
20 Screwdriver Parallel Blade 8 x 150 mm TL: 260 mm 1
21 Screwdriver Parallel Blade 10 x 200 mm TL: 320 mm 1
22 Offset Screwdriver 6 x 140 mm 1
23 Offset Screwdriver 8 x 160 mm 1
24 Offset Screwdriver 10 x 180 mm 1
25 Philips Screwdriver No.1 x 60 TL 170 mm 1
26 Philips Screwdriver No.2 x 100 TL: 200 mm 1
27 Philips Screwdriver No.3 x 150 TL: 260 mm 1
28 Philips Screwdriver No.4 x 200 TL: 320 mm 1
29 Adjustable End Wrench 6" (Max Jaw Opening 19 mm) 1
30 Adjustable End Wrench 10" (Max Jaw Opening 28 mm) 1
31 Adjustable Pipe Wrench 355 mm x 38 mm 1
32 Scraper 25 mm x 250 mm (140 mm Stiff Blade) 1
33 Shoe handle Brush 3 Row x 255 mm 1
34 Hacksaw Frame (300 mm Blade) 1
35 Blade Hacksaw 300 MM 1
36 Pinch & Claw 13 mm x 255 mm 1
Explosive Detection Kit (Expray Plus)
A simple and safe way to detect explosives before they go off.

Suspicious objects as well as suspect persons can be identified easily within Seconds! Expray works on conventional (TNT), plastic explosives (RDX, Semtex) and improvised explosives such as Nitrate based (ANFO).

Expray identification kit consists of laminated test papers and three spray cans: "E" (Expray 1), "X (Expray 2)" and "I" (Expray 3) and three DropEx bottles A, B+ and U.

This kit performs 02 sets of tests as described below:
First Set of Test:-
The first set of test consists of "E" (Expray 1), "X (Expray 2)" and "I" (Expray 3) and Drop Ex bottle U to be used for the detection of below family of explosives:

Group A: Nitroaromatics, such as TNT, Tetryl, TNB and Picric acid.

Group B: Nitroesters, such as Dynamite, Smokeless powder and Nitroamines such as RDX and Semtex.

INORGANIC NITRATE BASED EXPLOSIVES: Such as ANFO and Black Powder. The 3 canisters must be applied sequentially on the paper or surface.

Urea Nitrate: To distinguish between Urea Nitrate and other Nitrate salts (Potassium and Ammonium Nitrate). Use only after positive reaction for Nitrates.

Second Set of Test:

The second set of test consist of DropEx bottles A and B+ to be used for the detection of Chlorates based and peroxide explosives compounds. The reagents must be applied on a new collection paper. For each set of tests a different collection paper must be used. Performing all the tests on the same collection paper may show unexpected colors that have no significance.

Pin Hole Camera Detector (Voron)
The VORON is designed for quick detection of concealed micro video cameras including those with pinhole lenses. Principle of detection is based on the effect of light reflection or “return flare”. When a concealed target is detected, a red bright spot (reflection from video camera lens) appears in the VORON field of vision.

The VORON employs LED illumination of targets, thus making the device usage safe for the operator (unlike laser illumination). Operation in optical, but not in radio frequency range allows detecting any optical devices, regardless of their mode (on/off) and type of transmission (radio or cable). Radio interference, electromagnetic shielding, masking gauze and lens hoods do not prevent from detection of video cameras. Dioptre correction allows almost everybody to operate the device.

Technical Specifications
Distance of ø 1mm pinhole lens detection, m 1 ÷ 50
Magnification 5x
Angle of view, ° 12
Linear field of view at distance of 10 m, m 2,1
Diopter correction range ±4
Diameter of exit pupil, mm 4,5
Voltage, V 1,5
Operation on one battery, h 6
Dimensions, mm 50 x 68 x 140
Weight, g 330
Anti-Sniper Optics Detector (Sentinel S40)
Detect Optical Systems Targeting You!
  • VIP security
  • Automatic scanning mode
  • Sniper detection
  • All weather 24-hour surveillance
  • Video & photography detection
  • Vehicle or pole/building mounted
  • Border protection
  • Detection of cameras & scopes
  • Security of important locations
  • Monitoring & automatic alerts
New Advances in Sentinel:
  • Auto-focus
  • Waterproof (IP67)
  • Geo-locates targets
  • Built-in high capacity battery
  • Compass, inclinometer, GPS position
  • Full PC remote control & video interface
  • Internal still/video recording (SD card)
  • Advanced clutter rejection Technology

Technical Specifications

EOD Search Suit

EOD Search Suit is a recent development to meet the demand for protective wear for mine clearance work.

The suit is a 2 piece suit and offers maximum coverage whilst keeping flexibility and lightweight a priority.

Features:
  • Covers all major areas of the body that could be life threatening if damaged e.g. Groin, armpits and neck
  • Groin protection can be either raised or lowered
  • Jacket offers front, back, side, shoulder, groin, under-arm and neck protection
  • Trousers offer front protection from the waist to the knee
Sizing:


The Demining suit is available in Medium, Large and X-Large. However other sizes are available upon request.

Protection:


Ballistic protection is against Fragmentation Level F2 – V50 against a 17 grain fragment of 450 m/s

Telescopic Manipulator
The NIC Carbon fibre Robotic Telescopic Manipulator has been developed with leading EOD operators in the British Army. Now manufactured from a fully telescopic carbon fibre pole, the new design is stronger and lighter, and can be adjusted to a much greater degree to increase its operational capability.

The claw is positioned at the end of a 3 metre carbon fibre telescopic arm. This standoff distance significantly increases operator safety, in the event of an unplanned detonation. The manipulator also hosts a frangible section. In the event of an unplanned detonation, this section will fail first, significantly reducing the force transferred along the manipulator to the operator.

The robotic claw is able to manipulate disrupters, X ray equipment and a host of other tools used in disposal or investigation techniques. The ability to grasp, and rotate objects in the claw also offers the options of moving devices into containment vessels, or to reposition them in. Once a device is held in the jaws, the ability to rotate the jaws ensures that the device may be moved in the safest orientation for the operator.

The manipulator offers the following advantages:
  • Operators may carry out tasks at a 3 metre stand off, offering increased levels of safety.
  • Ability to place disrupters, X ray equipment and a host of other tools used in device disposal and investigation.
  • Jaws open/close and rotate under powered control.
  • The angle of the jaws is achieved by manual adjustment.
  • Adjustable counterweight for perfect balance
  • Fully telescopic carbon fibre tube sections, simple assembly.
  • Rigid Transport case.
  • Rechargeable battery (charger included).
  • Twice the rigidity of other telescopic manipulators.
Unmanned Aerial Vehicle (Aeryon SkyRanger)
Field-tested and battle-proven, Aeryon small UAS set the standard for immediate aerial intelligence gathering by ANYONE, ANYWHERE, at ANYTIME.

The Aeryon SkyRanger™ introduces a new airframe and integrated system design to the Aeryon sUAS platform, based on thousands of hours of flight time and successful customer exercises and missions around the world. Designed to military and government specifications, SkyRanger™ extends industry-leading performance and system capabilities.

The Aeryon sUAS platform brings secure, real-time and simultaneous tactical situational awareness to ground forces and remote command. Advanced autonomous capabilities and simple touchscreen controls require minimal training for soldier, squad, or platoon-level deployment.

Unlike fixed-wing systems, the Aeryon SkyRanger™ is a Vertical Take-Off and Landing (VTOL) sUAS – ideal for providing continuous eyes-on-target for situational awareness, operations in confined environments, and low-risk launch and retrieval without peripheral equipment. SkyRanger™ is ideally suited for both land and maritime military use including covert ISR, convoy and compound security, and ship boarding operations.

Immediate deployment, small size, quiet operation and specialized imaging payloads make SkyRanger™ the ideal platform for a wide range of missions in any conditions, including:

  • Tactical situational awareness & targeting
  • Perimeter & convoy security
  • Covert Intelligence, Surveillance and Reconnaissance (ISR)
  • Anti-piracy, tactical ship boarding
  • De-mining
  • Emergency & disaster response
  • HAZMAT/CBRNE management

TECHNICAL SPECIFICATIONS:
  • ENDURANCE:
    Up to 50-minute flight time (with payload)
  • WIND TOLERANCE:
    40 mph (65 kph) sustained
    55 mph (90 kph) gusts
  • ENVIRONMENTAL TEMPERATURE RANGE:
    -22 –122oF (-30 – 50oC)
  • BEYOND LINE-OF-SIGHT RANGE:
    1.9 mi (3 km) integrated capability
    Extensible beyond 3.1 mi (5 km)
  • ALTITUDE:
    1500 ft. (450 m) AGL, 15000 ft. (4500 m) MSL
  • LAUNCH & RECOVERY METHOD:
    Vertical Take-Off and Landing (VTOL)
  • DIMENSIONS:
    Deployed: 40 in. (102 cm) diameter, 9.3 in. (24 cm) height
    Folded: 20 in. (50 cm) length, 10 in. (25 cm) width
  • WEIGHT (WITHOUT PAYLOAD):
    5.3 lbs (2.4 kg)
  • ADDITIONAL PAYLOADS:
    3-axis stabilized high resolution EO camera
    Custom payload development
  • NAVIGATION LEDS:
    Red/Green and Red/NIR
  • RADIO FREQUENCIES:
    900 mhz, 2.4 GHz, custom
  • CONTROL AND DATA LINK:
    Low-latency all-digital network
  • SECURITY:
    Secure network pairing, AES 256 bit encryption
Breath Alcohol Analyser (Uniphos 395)

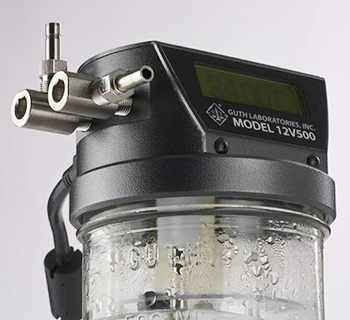

Alcohol Breath Test Simulator (12V500 )
The Guth Model 12V500 Alcohol Breath Simulator is a State-of-the-Art, electronically temperature controlled, water-alcohol instrument for the purpose of providing a precise calibration standard for testing or calibration of alcohol breath analyzers. The Model 12V500 is the first simulator of its kind to incorporate dual temperature probes to independently control and monitor the temperature of the solution. The temperature of the water-alcohol solution placed in the simulator is maintained at 34°C ± .05°C or better. The inlet and outlet port pathways have been designed to be an integral part of the one piece heated aluminum top housing thus allowing uniform heating and reduction of condensation. The new LCD graphics display has a temperature resolution of .01° C and in the event of an error allows feedback to the user in the form of messages instead of codes. As with all Guth products the 12V500 has been engineered using the highest quality components to give reliable, accurate and trouble free operation.
PERFORMANCE
  • Temperature Stability: better than ± .05°C
  • Warm-up Time, Solution and Head Space: less than 10 minutes at 20°C
  • Recovery Time from Test: less than 5 seconds
  • Solution Level: 500ml
  • Calibration Stability: 1 year
FEATURES
  • DUPLEX Temperature Monitoring and Control System
    • Microprocessor controlled circuit to heat and maintain solution temperature of 34.00°C
    • Independent circuit for monitoring and display of solution temperature
  • Machined one piece Top Housing design with integrated manifold allows uniform heating of the inlet and outlet passages. This design allows for the elimination of condensation due to unheated or poorly heated tubing inside of the simulator
  • Controlled Head Space Heater (U.S. Patent No. 7,493,793). Rapidly heats top housing and passages to a uniform temperature eliminating equilibration time (15-60 minutes) usually needed once attaining 34.00°C.
  • Backlighted 132 x 32 pixel LCD Graphic Display
    • Temperature display resolution of .01°C
    • Visual indication of head space heater and solution heater activity.
  • Self diagnostics with audible and visual indication of system status. Status messages are displayed indicating exactly what is wrong with the simulator instead of error codes.
  • 12 VDC operation
  • Included Power Supply - Input 100-240 V~1.5A, 47-63Hz; Output 12 VDC @ 8.33 A; UL/ cUL/ CE Listed
  • RS232 port for interfacing with popular breath analyzers
© Ellen Safety Group 2011, all rights reserved. Website Design & Developed by Nimbus Adcom Pvt. Ltd. a Website Designing Company in Delhi.
